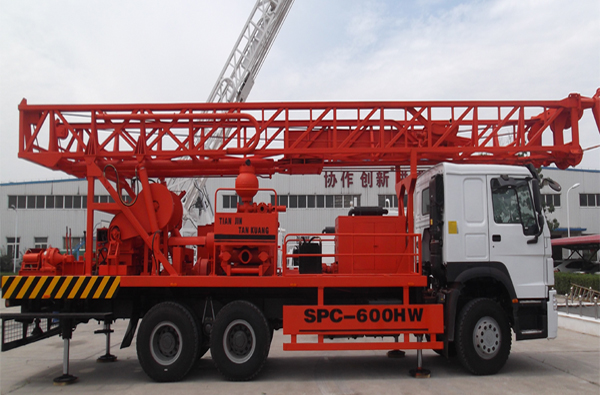

SPC-600 water well drilling rig is truck
mounted rotary drilling rig. The main parts of the machine are installed in the
"HOWO” 6×6 automotive
chassis. Diesel engine and motor can be added on drilling equipment as power. SPC-600
water well drilling rig adopts direct cycle drilling mode to realize air DTH
hammer drilling. The machine is equipped with pressure device which greatly
enhance the drilling efficiency.
SPC-600 truck mounted
rotary drilling rig is widely used in agriculture and drinking water supply.
Parameters
SPC-600 Water Well
Drilling Rig
The shape size:
12000×2500×4230(MM)
|
The whole machine weight
25T
|
|
Drilling aperture:500MM
|
The drilling depth:600M
|
|
Kelly:108×108×7500MM
|
Hole drill pipe :φ89
|
|
Drill chassis parts
|
① Chassis: HOWO State IV
② Driving
method: 6×6
|
|
The mast section
|
① Type: Truss
type
② Load: 60T
③ Height:11M
④ The
characteristics of the mast: The mast with double hydraulic cylinder pressure device
, and the pressure of 196000N
|
|
Diesel power part
|
Diesel engine model: BF6L913C
|
|
air patenting
|
|
Power/Speed
|
|
141KW 2500r/min
|
|
maximum torque / speed
|
|
490N.m/1650r/min
|
Mud Pump
|
Model BW1100/50
mud pump
maximum pressure 5 MPa
maximum pump discharge 1100 L/min
|
|
The guide pull down mechanism
|
The maximum pull down 196000N
Pull down stroke 7.6M
Pull down doe rope diameter Φ9.3 MM
|
|
Rotary table gear box
|
Output speed (r/min)
Ⅰ Ⅱ Ⅲ IV V reversal
27
49 80 131
208 35
|
|
Main hoist
|
① Single rope tension 44100N
② Drum diameter: φ280MM
③ wirerope diameter Φ19.5MM
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
Ⅴ
|
speed
(r/min)
|
27
|
49
|
80
|
131
|
208
|
Include
Vice winch, tool winch
|
Vice winch
|
① Single rope tension 19600N
② Drum diameter: φ185MM
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
Ⅴ
|
speed
(r/min)
|
27
|
49
|
80
|
131
|
208
|
|
winch tool
|
① Single rope tension 10000N
② Drum diameter: φ150MM
③ wirerope diameter Φ11MM
④ rope capacity 45M
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
Ⅴ
|
speed
(r/min)
|
27
|
49
|
80
|
131
|
208
|
|
control panel
|
All hydraulic operation, the source of
power for hydraulic pump,convenient and efficient
|
|
rotary table
|
Rotary table through hole diameter
(mm) Φ505
Remarks:Speed
parameters see Rotary table gear box
|
|
The rig can be installed 30KW generator
|
After the installation of generator, can
be used as electric welding, lighting, and other useful life.
|
