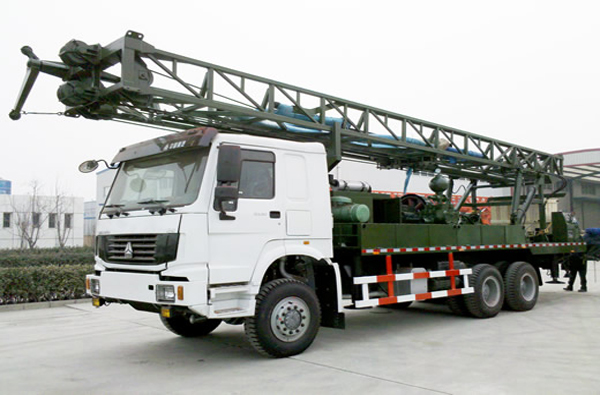

SPC-400 water well drill rig is truck
mounted water well drilling rig. The main parts of the machine are installed in
the "HOWO” 6×6 automotive
chassis. Diesel engine and motor can be added on drilling equipment as power. SPC-400
water well drill rig adopts direct cycle drilling mode to realize air DTH
hammer drilling. The machine is equipped with pressure device which greatly
enhance the drilling efficiency.
SPC-400 truck mounted
water well drilling rig is widely used in agriculture and drinking water
supply.
Parameters
SPC-400 Water Well Drill Rig
The shape size:
12000×2500×4230(MM)
|
The whole machine weight
25T
|
|
|
Drilling aperture:500MM
|
The drilling depth:400M
|
|
|
Kelly:108×108×7500MM
|
Hole drill pipe :φ89
|
|
Drill chassis parts
|
① Chassis: HOWO
② Driving
method: 6×6
|
|
|
|
The mast section
|
① Type: Van
② Load :15T
③ Height:11M
④ The
characteristics of the mast: Mast with hydraulic hole pressure device, and the pressure of2000KG
⑤ At the top
of a lighting device
|
|
Diesel power part
|
Diesel engine model:
F6L912 OR
6135AN
|
|
|
air patenting
|
water-cooling
|
|
|
Power/Speed
|
Power/Speed
|
|
|
74KW 2300r/min
|
100KW
1500r/min
|
|
|
maximum torque / speed
|
maximum torque / speed
|
|
|
345NM
1600r/min
|
647NM 1250r/min
|
|
|
Mud Pump
|
Model BW900 mud pump
maximum pressure 2.5
MPa
maximum pump discharge 900 L/min
|
|
The guide pull down mechanism
|
The maximum pull down 2000 KG
Pull down stroke 1000
MM
guide rod diameter Φ50 MM
Pull down doe rope diameter Φ9.3 MM
|
|
|
Rotary table gear box
|
Output speed (r/min)
Ⅰ Ⅱ Ⅲ reversal
49 131 208
35
|
|
Main hoist
|
① Single
rope tension 4410KG
② rope
capacity 130/φ19.5
|
|
Include
Vice winch, tool winch
|
Vice winch
|
① Single
rope tension 2000KG
② Drum
diameter: φ268MM
③ wirerope
diameter Φ15.5MM
④ rope
capacity 120M
|
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
speed
(r/min)
|
21.5
|
42.5
|
61
|
|
|
winch tool
|
① Single
rope tension 2000KG
② Drum
diameter: φ268MM
|
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
speed
(r/min)
|
21.5
|
42.5
|
61
|
|
|
control panel
|
All hydraulic operation, the source of
power for hydraulic pump,convenient and efficient
|
|
rotary table
|
Rotary table through hole diameter
(mm) Φ505
Remarks: Speed parameters see Rotary table gear box
|
|
The rig can be installed 30KW generator
|
After the installation of generator, can
be used as electric welding, lighting, and other useful life.
|
|
|
The rig can also be provided with the
motor and starting cabinet as power, and can power, diesel dual.
|
|
