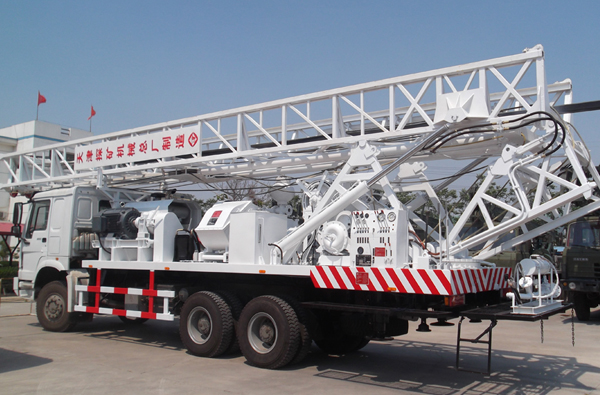

SPC-600HW water well drilling rig is truck
mounted rotary drilling rig. The main parts of the machine are installed in the
"HOWO” 6×6 automotive
chassis. Diesel engine and motor can be added on drilling equipment as power. SPC-600HW
water well drilling rig adopts direct cycle drilling mode to realize air DTH
hammer drilling. The machine is equipped with pressure device which greatly
enhance the drilling efficiency.
SPC-600 water well drilling rig is widely
used in agriculture and drinking water supply.
Our Company is an
experiencedChinawater well drill rig supplier, we have different kinds of quality products for
sale.
Parameters
SPC-600HW Water Well Drilling
Rig
The shape size:
12000×2500×4230(MM)
|
The whole machine weight
25T
|
|
Drilling aperture:500MM
|
The drilling depth:600M
|
|
Kelly:108×108×7500MM
|
Hole drill pipe :φ89
|
Drill chassis parts
|
① Chassis:
HOWO
② Driving
method: 6×6
③Wheelbase 4600MM+1350MM
④ Tread
wheel (along) 2041MM
⑤ Rear
wheels (the distance between the center line of twins) 1830/1830MM
⑥ Steel
plate spring leaf number 10/12
⑦ Fuel
type diesel
⑧ Number of
tire 10
⑨ tyre
size 11.00R20 16PR
⑩ Truck mounted
rig speed (speed) 70 KM/H
|
The mast section
|
① Type:
Truss type
② Load :60T
③ Height:15M
④ The
characteristics of the mast: 196000N
The mast with double hydraulic cylinder
pressure device , and the pressure of 196000N
|
|
|
|
power part
|
Electric motor model:
|
|
Power
132KW
|
|
frequency inverter
|
Mud Pump
|
Model BW1100/50 mud pump
maximum pressure 5 MPa
maximum pump discharge 1100 L/min
required power 95 Horsepower
suction pipe diameter Φ150 MM
diameter of the drain pipe Φ76MM
|
The guide pull down mechanism
|
The maximum pull down 196000N
Pull down stroke 7.6M
Pull down doe rope diameter Φ9.3 MM
|
|
Rotary table gear box
|
Output speed (r/min)
Ⅰ Ⅱ Ⅲ IV V
reversal
27
49 80 131 208 35
|
Main hoist
Include
Bailing , tool winch
|
Bailing
|
① Single
rope tension 20000N
② Drum
diameter: φ185MM
③ wirerope
diameter Φ11MM
④ rope
capacity 450M
⑤ Rope speed 1.6m/s
|
|
winch tool
|
① Single rope tension 10000N
② Drum diameter: φ150MM
③ wirerope diameter Φ11MM
④ rope capacity 450M
|
|
control panel
|
All hydraulic operation, the source of
power for hydraulic pump,convenient and efficient
|
rotary table
|
Rotary table through hole diameter
(mm) Φ505
Remarks:
Speed parameters see Rotary table gear
box
|
|
The rig can be installed 30KW generator
|
After the installation of generator, can
be used as electric welding, lighting, and other useful life.
|
Diesel power part
|
Diesel engine model: BF6L913C
|
|
air patenting
|
|
Power/Speed
|
|
141KW 2500r/min
|
|
maximum
torque / speed
|
|
490N.m/1650r/min
|
