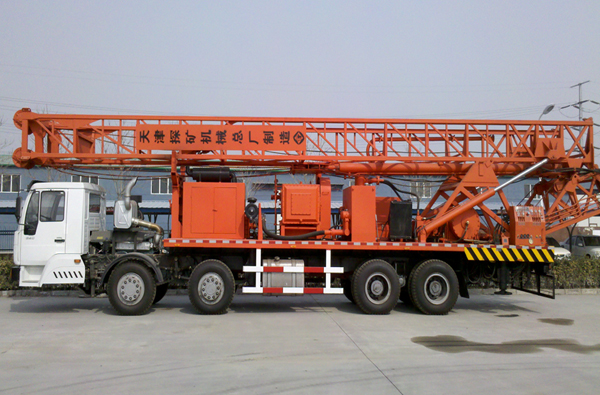

SPC-1000 water well rig is truck mounted
water well drilling rig truck. The main parts of the machine are installed in
the "HOWO” 8×4 automotive
chassis. Diesel engine and motor can be added on drilling equipment as power. SPC-1000
water well rig adopts direct cycle drilling mode to realize air DTH hammer
drilling. The machine is equipped with pressure device which greatly enhance
the drilling efficiency.
SPC-1000 water well
drilling rig truck is widely used in agriculture and drinking water supply.
Parameter
The shape size:
14180×2500×4100(MM)
|
The whole machine weight
29T
|
|
|
Drilling aperture:500MM
|
The drilling depth:1000M
|
|
|
Kelly:108×108×10450MM
|
Hole drill pipe :φ89
|
|
Drill chassis parts
|
① Chassis: HOWO
② Driving
method: 8×4
|
|
|
|
The mast section
|
① Type : Truss
type
② Load : 60T
③ Height: 15M
④ The
characteristics of the mast:The mast with double hydraulic cylinder pressure device
, and the pressure of 350000N
|
|
Diesel power part
|
Diesel engine model: BF8L513C
|
|
|
Power/Speed: 213kW/2300r/min
|
|
Mud Pump
|
Model BW1500 mud pump
maximum pressure 12 MPa
maximum pump discharge 1500 L/min
|
|
The guide pull down mechanism
|
The maximum pull down 350000N
Pull down stroke 10.6M
Pull down doe rope diameter Φ9.3 MM
|
|
Rotary table gear box
|
Output speed (r/min)
Ⅰ Ⅱ Ⅲ IV V
reversal
27 49
80 131 208
35
|
|
Main hoist
hoisting tool
|
① Single
rope tension 68600N
② Rope
capacity (m): 130/Φ21.5
|
|
control panel
|
All hydraulic operation, the source of
power for hydraulic pump,convenient and efficient
|
|
rotary table
|
Rotary table through hole diameter
(mm) Φ505
Remarks:Speed
parameters see Rotary table gear box
|
|
|
The rig can be installed 30KW generator
|
After the installation of generator, can
be used as electric welding, lighting, and other useful life.
|
|
