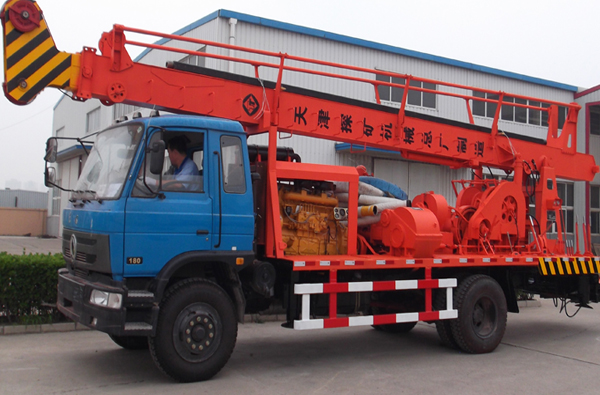

The shape size:
10850×2470×3870(MM)
|
The whole machine weight
14T
|
|
|
Drilling aperture:500MM
|
The drilling depth:300M
|
|
|
Kelly:108×108×7500MM
|
Hole drill pipe :φ89
|
|
|
Drill chassis parts
|
① Chassis: EQ1141KJ DONGFENG EQ1141KJ
② Driving method: 4×2
③ Wheelbase 4500MM
④ Tread
wheel (along) 1940MM
⑤ Rear
wheels (the distance between the center line of twins) 1860MM
⑥ approach
angle 34°
⑦ departure
angle 13.3°
⑧ Number of
tire front 2,after 4
⑨ tyre size 11.00~20
⑩ Truck
mounted rig speed (speed) 50 KM/H
|
|
|
|
|
The mast section
|
① Type: Van
② Load :15T
③ Height:11M
④ The
characteristics of the mast: Mast with hydraulic hole pressure device, and the pressure of2000KG
⑤ At the top
of a lighting device
|
|
Diesel power part
|
Diesel engine model: F6L912 OR
6135AN
|
|
|
air patenting
|
water-cooling
|
|
|
Power/Speed
|
Power/Speed
|
|
|
74KW 2300r/min
|
100KW
1500r/min
|
|
|
maximum torque / speed
|
maximum torque / speed
|
|
|
345NM
1600r/min
|
647NM 1250r/min
|
|
|
Mud Pump
|
Model BW900/25 mud pump
maximum pressure 2.5 MPa
maximum pump discharge 1030 L/min
required power 52 Horsepower
suction pipe diameter Φ102 MM
diameter of the drain pipe Φ64 MM
|
|
|
The guide pull down mechanism
|
The maximum pull down 2000
KG
Pull down stroke 1000
MM
guide rod diameter Φ50 MM
Pull down doe rope diameter Φ9.3 MM
|
|
|
Rotary table gear box
|
Output speed (r/min)
Ⅰ Ⅱ Ⅲ reversal
44 68
105 34
|
|
|
Main hoist
|
① Single
rope tension 3000KG
② Drum diameter: φ273MM
③ wirerope
diameter Φ15.5MM
④ rope
capacity 120M
|
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
speed
(r/min)
|
43
|
85
|
122
|
|
|
Include
Vice winch, tool winch
|
Vice winch
|
① Single
rope tension 2000KG
② Drum
diameter: φ268MM
③ wirerope
diameter Φ15.5MM
④ rope
capacity 120M
|
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
speed
(r/min)
|
21.5
|
42.5
|
61
|
|
|
winch tool
|
① Single
rope tension 2000KG
② Drum
diameter: φ268MM
|
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
|
speed
(r/min)
|
21.5
|
42.5
|
61
|
|
|
control panel
|
All hydraulic operation, the source of
power for hydraulic pump,convenient and efficient
|
|
|
rotary table
|
Rotary table through hole diameter
(mm) Φ505
Remarks: Speed
parameters see Rotary table gear box
|
|
|
The rig can be installed 30KW generator
|
After the installation of generator, can
be used as electric welding, lighting, and other useful life.
|
|
|
The rig can also be provided with the
motor and starting cabinet as power, and can power, diesel dual.
|
|
