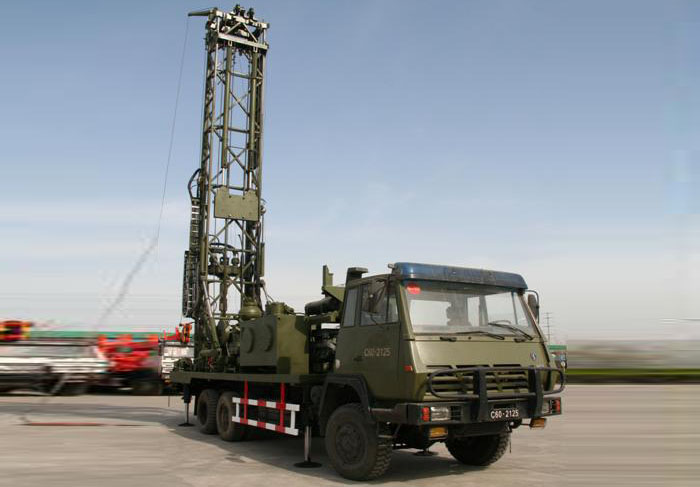

600m water well drill equipment is full hydraulic truck mounted
drill rig which is featured with high efficiency and convenient operation. It
includes two models: SDC-600 and SDC-600HW water well drill equipment.
SDC-600 truck mounted
drill rig is mainly used for drilling water well, geothermal wells, geophysical
exploration hole, and oil and gas wells with the drilling depth less than 600
meters.
SDC-600HW water well
drill equipment is equipped with air compressor to facilitate the rapid of DTH
hammer drilling.
Our
company is a well-known truck mounted drill rig supplier inChina; we
provide high quality drilling rigs for our customers.
Parameter
SDC-600
Water
Well Drill Rig
|
Dimension(m)
|
11750mm×2500mm×4500mm
|
|
Weight
(t)
|
28
|
|
Allowed people in the
cab
|
2
|
|
The maximum speed(Km/h)
|
70
|
|
Chassis
|
HOWO
|
|
Drive mode
|
6×6
|
|
Drilling rig
|
Drill Capacity
|
The diameter of the
hole(mm)
|
500
|
|
Depth(m)
|
600
|
|
Power
|
MODEL
|
BF8L513C
|
|
Rate(kw/rpm)
|
213/2300
|
|
Drill rod
|
The drill rod in the
hole(mm)
|
φ89×6000
|
|
Rotary table
|
Hole diameter(mm)
|
800
|
Power top rotary speed rpm/Torque Nm
|
0~130rpm,8400Nm
|
|
Feed system
|
Stroke m
|
7.6m
|
Feed back(kN)
|
250
|
|
Lifting speed m/s
|
0~0.54m/s
|
Maximum feed force(kN)
|
150
|
Hydraulic power top system
|
Maximum torque N•m
|
1170
|
The maximum power top rotary speed
r/min
|
1500
|
Cylinder diameter /stroke (mm)
|
125×130
|
Mud pump
|
MODEL
|
BW1100
|
|
Pressure (MPa)
|
5
|
The maximum displacement (l/min)
|
1100
|
Tower
|
MODEL
|
|
Load(t)
|
40
|
|
The effective height
(m)
|
11
|
