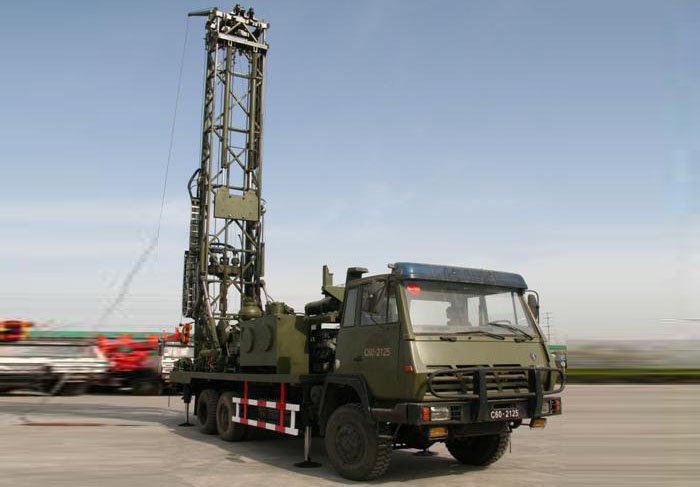

SDC-600 Truck mounted
hydraulic drilling rig is used for drilling water well, geothermal well,
exploratory hole and superficial oil & gas well with the drilling depths
less than 600 meters.
SDC-600
water well drilling equipment adopts high-power diesel engine and full
hydraulic driving mode. Lazy arm and large torque hydraulic shackle is fixed on
the machine in order to alleviate labour intensity and improve work efficiency.
The truck mounted hydraulic drilling rig is equipped with air compressor to
facilitate the rapid of DTH hammer drilling.
Parameter
SDC-600 Water Well
Drilling Equipment
|
Dimension(m)
|
11750mm×2500mm×4500mm
|
|
Weight (t)
|
28
|
|
Allowed people in the
cab
|
2
|
|
The maximum speed(Km/h)
|
70
|
|
Chassis
|
HOWO
|
|
Drive mode
|
6×6
|
|
Drilling rig
|
Drill Capacity
|
The diameter of the
hole(mm)
|
500
|
|
Depth(m)
|
600
|
|
Power
|
MODEL
|
BF8L513C
|
|
Rate(kw/rpm)
|
213/2300
|
|
Drill rod
|
The drill rod in the
hole(mm)
|
φ89×6000
|
|
Rotary table
|
Hole diameter(mm)
|
800
|
|
Power top rotary
speed rpm/Torque Nm
|
0~130rpm,8400Nm
|
Feed system
|
Stroke (m)
|
7.6m
|
Feed back(kN)
|
250
|
Lifting speed (m/s)
|
0~0.54m/s
|
|
Maximum feed force(kN)
|
150
|
Hydraulic power top system
|
Maximum torque (N•m)
|
1170
|
The maximum power top rotary speed (r/min)
|
1500
|
Cylinder diameter /stroke (mm)
|
125×130
|
Mud pump
|
MODEL
|
BW1100
|
|
Pressure (MPa)
|
5
|
The maximum displacement (l/min)
|
1100
|
Tower
|
MODEL
|
|
Load(t)
|
40
|
The effective height (m)
|
11
|
