SPC-300HW(6×6) Water Well Drill Rig

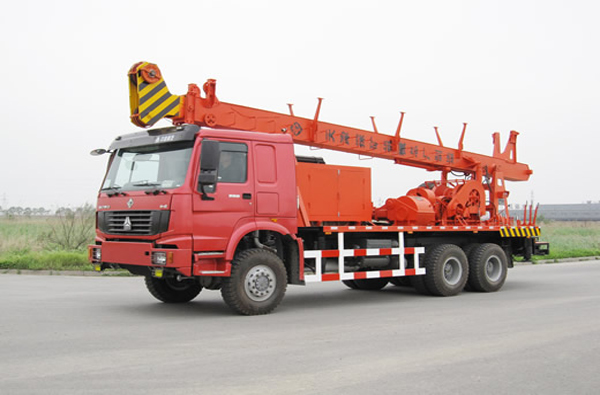

SPC-300HW water well drill rig is truck mounted rotary water well drilling equipment. The main parts of the machine are installed in the "HOWO” 6×6 automotive chassis. Diesel engine and motor can be added on drilling equipment as power. SPC-300HW water well drill rig adopts direct cycle drilling mode to realize air DTH hammer drilling. The machine is equipped with pressure device which greatly enhance the drilling efficiency. SPC-300HW water well drilling equipment is widely used in agriculture and drinking water supply.


SPC-300HW Water Well Drill Rig

The shape size:
The whole machine weight
Drilling aperture:500MM The drilling depth:300M
Kelly:108×108×7500MM Hole drill pipe :φ89

Drill chassis parts
① Chassis: HOWO StateⅣ
② Driving method: 6×6

The mast section
① Type: Van
② Load :15T
③ Height:11M
④ The characteristics of the mast: Mast with hydraulic hole pressure device, and the pressure of2000KG
⑤ At the top of a lighting device
Diesel power part Diesel engine model: F6L912
air patenting
74KW 2300r/min
maximum torque / speed
345NM 1600r/min

Mud Pump
Model BW900/25 mud pump
maximum pressure 2.5 MPa
maximum pump discharge 1030 L/min
required power 52 Horsepower
suction pipe diameter Φ102 MM
diameter of the drain pipe Φ64 MM
The guide pull down mechanism The maximum pull down 2000 KG
Pull down stroke 1000 MM
guide rod diameter Φ50 MM
Pull down doe rope diameter Φ9.3 MM

Rotary table gear box
Output speed (r/min)
Ⅰ Ⅱ Ⅲ reversal
44 68 105 34

Main hoist
① Single rope tension 3000KG
② Drum diameter: φ273MM
③ wirerope diameter Φ15.5MM
④ rope capacity 120M
43 85 122

Vice winch, tool winch
Vice winch ① Single rope tension 2000KG
② Drum diameter: φ268MM
③ wirerope diameter Φ15.5MM
④ rope capacity 120M
21.5 42.5 61
winch tool ① Single rope tension 2000KG
② Drum diameter: φ268MM
21.5 42.5 61
control panel All hydraulic operation, the source of power for hydraulic pump,convenient and efficient

rotary table
Rotary table through hole diameter (mm) Φ505
Remarks:Speed parameters see Rotary table gear box
The rig can be installed 30KW generator After the installation of generator, can be used as electric welding, lighting, and other useful life.
The rig can also be provided with the motor and starting cabinet as power, and can power, diesel dual.
