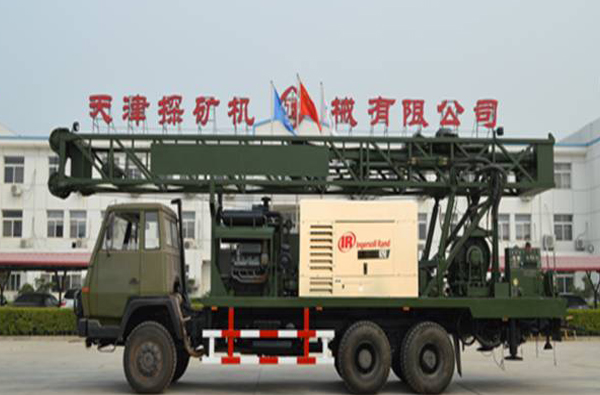

SDC-600HW Truck mounted
hydraulic water well drilling rig is used for drilling water well, geothermal
well, exploratory hole and superficial oil & gas well with the drilling
depths less than 600 meters.
SDC-600 Truck mounted
hydraulic water well drilling rig adopts high-power diesel engine and full
hydraulic driving mode. Lazy arm and large torque hydraulic shackle is fixed on
the machine in order to alleviate labour intensity and improve work efficiency.
The truck mounted hydraulic drilling rig is equipped with air compressor to
facilitate the rapid of DTH hammer drilling.
Our
Company is an experienced China drilling rig manufacturer. We have high quality
products with various specifications to satisfy your needs.
Parameters
SDC-600HW Truck Mounted Hydraulic Water Well Drilling
Rig
|
Project
|
type
|
|
|
Model
|
SDC-600HW
|
|
|
Item
|
|
|
Dimensions(mm)
|
Working
|
10750×2500×13000
|
|
|
Transport
|
11750×2500×4500
|
|
|
Whole machine weight
(t)
|
25
|
|
|
Crew/operations
staff
|
2
|
|
|
Maximum speed(Km/h)
|
70
|
|
|
Automobile Chassis
|
Chassis Sinotruck
|
HOWO
|
|
|
Chassis Model
|
ZZ2257M5857
|
|
|
Driving Mode
|
6×6
|
|
|
Wheelbase (mm)
|
5800+1400
|
|
|
|
Drilling
|
diameter of holes(mm)
|
500
|
|
|
Rig
|
Ability
|
Depth(m)
|
600
|
|
|
|
Power
|
Model
|
BF8L513C
|
|
|
|
Power (kw/rpm)
|
213/2300
|
|
|
|
Number of cylinders
|
8
|
|
|
|
Drill rod
|
Drill rod inside(mm)
|
φ89(73)×6000 φ114×4500
|
|
|
Top head Drive
|
Through hole diameter(mm)
|
Φ260—φ600
|
|
|
speed(r/min)
|
0~130
|
|
|
Torque Nm
|
8400
|
|
|
Feed Mechanism
|
Type
|
Cylinder chain
|
|
|
To enter Agency
|
pull back(kg)
|
25000
|
|
|
|
pill down(kg)
|
10000
|
|
|
|
Stroke(m)
|
7.6
|
|
|
Shackle body shackle
maximum torque(kN.m)
|
30
|
|
|
Vice hoist
|
Single cable tension(kg)
|
3000
|
|
|
|
Rope(mm)
|
φ13
|
|
|
|
Line speed m/min
|
0~45
|
|
|
|
Rope capacity m
|
71
|
|
|
Hoist
|
Single cable tension(kg)
|
1000
|
|
|
Rope(mm)
|
φ10
|
|
|
Line speed m/min
|
0~36
|
|
|
Rope capacity m
|
35
|
|
|
centrifugal sand pump
on the chassis
|
Model
|
JSB6×5×11
|
|
|
Maximum displacement
|
120-220m³/h
|
|
|
pump head
|
26m
|
|
|
skid mounted Mud Pump
on the ground
|
Model
|
BW1100
|
|
|
Pressure(MPa)
|
5
|
|
|
Maximum
displacement(l/min)
|
1100
|
|
|
mast
|
Type
|
Truss form
|
|
|
Load(t)
|
40
|
|
|
Height (m)
|
11
|
|
|
air compressor
|
Model Ingersoll-Rand
|
RHP825WCAT
|
|
|
pressure
|
21bar
|
|
|
|
|
flow
|
23.5m³
|
|
|
Dimensions(mm)
|
4060*2000*2032
|
|
|
Displacement of
Diesel Engine (L)
|
8.8
|
|
|
Rated Rotate Speed of
Diesel Engine
|
1800rpm
|
|
|
Rated Idling of
Diesel Engine
|
1350rpm
|
|
|
Diesel Engine Power(kw)
|
261kw
|
|
|
Cooling Method of
Diesel Engine
|
Diesel/Water
|
|
|
Electric System
Voltage(V)
|
24
|
|
|
Fuel tank capacity(L)
|
550
|
|
|
Weight(kg)
|
4400
|
|
