600m truck mounted rotary water well drill rig mainly includes
two models: SPC-600 water well drill rig and SPC-600HW water well drill rig. The

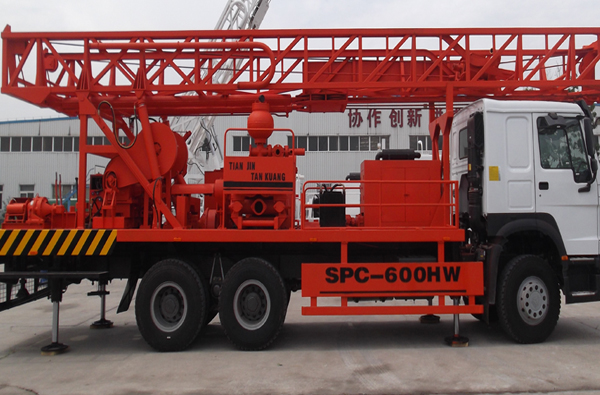

difference between these two models is tower. SPC-600 truck mounted rotary
water well drill rig has11
meterstower while SPC-600HW water well drill rig has15 meterstower.
The
main components of600mtruck
mounted rotary water well drill rig are installed in the "HOWO"
brand 6×6 automotive chassis. Both diesel engine and motor
can be added on the machine as power.
Application Case

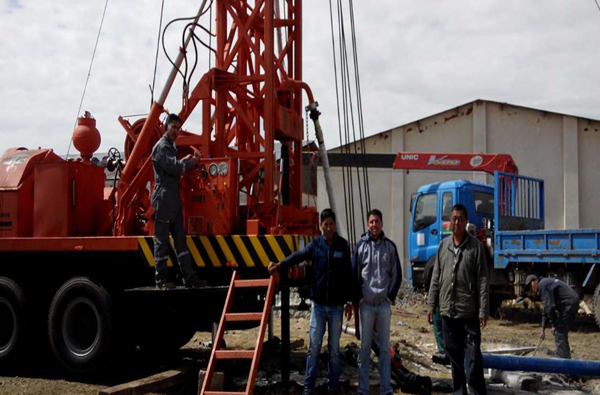

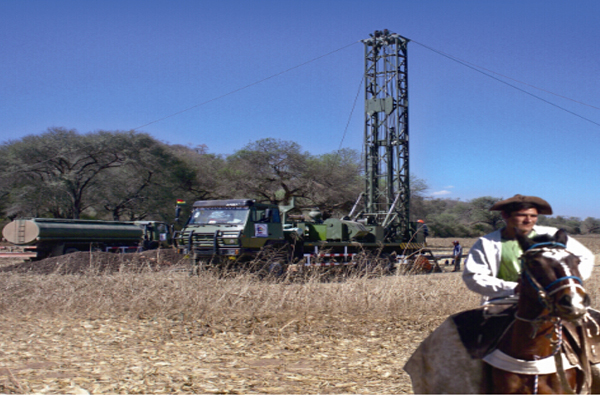

The flagship product600mtruck mounted water well drill rig works out a
high quality well in Bolivian plateau of South America, which solves the
drinking water problems and is greatly praised by local citizens.
Parameter
SPC-600 Water Well
Drill Rig
The shape size:
12000×2500×4230(MM)
|
The whole machine
weight
25T
|
|
Drilling aperture:500MM
|
The drilling depth:600M
|
|
Kelly:108×108×7500MM
|
Hole drill pipe :φ89
|
Drill chassis parts
|
① Chassis: HOWO state IV
② Driving method: 6×6
|
The mast section
|
① Type: Truss type
② Load :60T
③ Height:11M
④ The characteristics of the mast: The mast with double hydraulic cylinder pressure device
, and the pressure of 196000N
|
Diesel power part
|
Diesel engine model:
BF6L913C
|
|
air patenting
|
|
Power/Speed
|
|
141KW 2500r/min
|
|
maximum torque /
speed
|
|
490N.m/1650r/min
|
Mud Pump
|
Model BW1100/50 mud pump
maximum pressure 5 MPa
maximum pump discharge 1100
L/min
|
The guide pull down mechanism
|
The maximum pull
down 196000N
Pull down stroke 7.6M
Pull down doe rope diameter Φ9.3 MM
|
|
Rotary table gear box
|
Output speed (r/min)
Ⅰ Ⅱ Ⅲ IV
V reversal
27
49 80 131
208 35
|
Main hoist
|
① Single rope
tension 44100N
② Drum diameter: φ280MM
③ wirerope
diameter Φ19.5MM
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
Ⅴ
|
speed
(r/min)
|
27
|
49
|
80
|
131
|
208
|
Include
Vice winch, tool winch
|
Vice winch
|
① Single rope
tension 19600N
② Drum diameter: φ185MM
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
Ⅴ
|
speed
(r/min)
|
27
|
49
|
80
|
131
|
208
|
|
winch tool
|
① Single rope
tension 10000N
② Drum diameter: φ150MM
③ wirerope
diameter Φ11MM
④ rope
capacity 45M
|
|
shelves
|
Ⅰ
|
Ⅱ
|
Ⅲ
|
Ⅳ
|
Ⅴ
|
speed
(r/min)
|
27
|
49
|
80
|
131
|
208
|
|
control panel
|
All hydraulic
operation, the source of power for hydraulic pump,convenient
and efficient
|
|
rotary table
|
Rotary table through
hole diameter (mm) Φ505
Remarks: Speed parameters see Rotary table gear
box
|
|
The rig can be
installed 30KW generator
|
After the
installation of generator, can be used as electric welding, lighting, and
other useful life.
|
