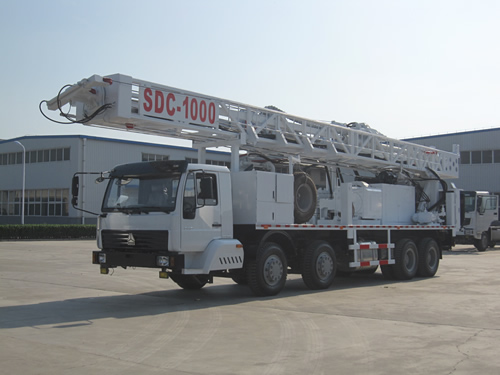

1000m truck mounted hydraulic water well drilling rig is the
latest developed drilling equipment which is suitable for less than1000mdepth drilling operation such as
water well drilling with big caliber, coal seam gas drainage wells , etc. All
the components of the truck mounted hydraulic water well drilling rig are
installed on HOWO 8×4 chassis.
1000m truck mounted hydraulic water well drilling rig adopts
direct cycle drilling mode to realize air DTH hammer drilling. It adopts pressure
device and hydraulic control, which greatly enhance drilling efficiency.
Parameters
|
outline
dimension(mm)
|
14700×2500×4000
|
|
Automobile chassis
|
HOWO 8×4
|
|
Machine weight (t)
|
37
|
|
Drilling capacity
|
Aperture (mm)
|
500
|
|
Depth (m)
|
1000
|
top head drive
|
Speed (RPM)
|
0~130
|
|
Torque
(N.m)
|
13000
|
|
Feeding mechanism
|
Travel (m)
|
11.5
|
|
Maximum lifting force
(kN)
|
462
|
|
Maximal feeding force
(kN)
|
226
|
|
Hoisting speed
(m/min)
|
0~32.5;0~2.6
|
|
Feed speed (m/min)
|
0~50;0~3.47
|
|
Winch
|
Main hoist
|
Single rope tension
(kN)
|
40
|
|
Speed (m/min)
|
0~60
|
|
Vice winch
|
Single rope tension
(kN)
|
20 kN
|
|
Speed (m/min)
|
0~60
|
|
MUD PUMP
|
Displacement
(L/min)
|
1500
|
|
drill tower
|
height(m)
|
14.5
|
|
weight(T)
|
32T
|
