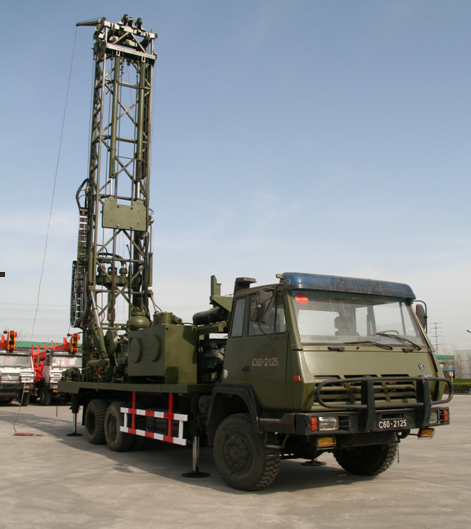

SDC-600 Water Well Drill Rig

SDC-600 Truck mounted hydraulic drilling rig is used for drilling water well, geothermal well, exploratory hole and superficial oil & gas well with the drilling depths less than 600 meters.
SDC-600 water well drilling equipment adopts high-power diesel engine and full hydraulic driving mode. Lazy arm and large torque hydraulic shackle is fixed on the machine in order to alleviate labour intensity and improve work efficiency. The truck mounted hydraulic drilling rig is equipped with air compressor to facilitate the rapid of DTH hammer drilling.

Parameter of SDC-600 Water Well Drilling Equipment

Dimension(m)			11750mm×2500mm×4500mm
Weight (t)			28
Allowed people in the cab			2
The maximum speed(Km/h)			70
Chassis			HOWO
Drive mode			6×6
Drilling rig	Drill Capacity	The diameter of the hole(mm)	500
		Depth(m)	600
	Power	MODEL	BF8L513C
		Rate(kw/rpm)	213/2300
	Drill rod	The drill rod in the hole(mm)	φ89×6000
Rotary table	Hole diameter(mm)		800
	Power top rotary speed rpm/Torque Nm		0~130rpm,8400Nm
Feed system	Stroke (m)		7.6m
	Feed back(kN)		250
	Lifting speed (m/s)		0~0.54m/s
	Maximum feed force(kN)		150
Hydraulic power top system	Maximum torque (N•m)		1170
	The maximum power top rotary speed (r/min)		1500
	Cylinder diameter /stroke (mm)		125×130
Mud pump	MODEL		BW1100
	Pressure (MPa)		5
	The maximum displacement (l/min)		1100
Tower	MODEL
	Load(t)		40
	The effective height (m)		11
