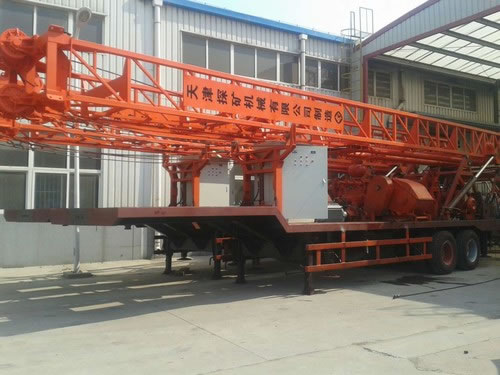

600m Water Well Drilling Rig

600m water well drill rig is trailer mounted water well drilling rig. Positive cycle drilling mode and swing movement are the main working methods of the machine. If equipped with proper drilling tools, it can also be used for other drilling explorations. It can drill in clay, stone, bedrock, etc. 600m water well drill rig can also be used for well drilling, underground tunnels drilling, ventilation holes drilling and etc.
It is compact in structure, centralized in control and equipped with high pressure and high volume slurry pump. Its pressurization mechanism could increase the drilling efficiency by increasing and decreasing the pressure.
Our company is a well-known China water well drilling rig supplier; we have various quality products to satisfy our customers’ needs.

Parameter of 600m Water Well Drill Rig

The shape size: 12600×2500×4230(MM)		The whole machine weight 21T
Drilling aperture:500MM		The drilling depth:600M
Kelly:108×108×7500MM		Hole drill pipe :φ89
Drill chassis parts	① Chassis: YanShan ② Wheelbase 9310MM+1310MM
The mast section	① MODEL: Truss type ② Load :35T ③ Height:11M
power part	Electric motor model:STC-30
	Power 30KW
Mud Pump	Model BW1100 mud pump maximum pressure 5 MPa maximum pump discharge 1100L/min
Rotary table gear box	Output speed (r/min) Ⅰ Ⅱ Ⅲ IV V reversal 27 49 80 131 208 35
Main hoist	① Single rope tension 4410KG ② Winch rope capacity (m) 130/φ19.5
rotary table	Rotary table through hole diameter (mm) Φ505 Remarks:Speed parameters see Rotary table gear box
The rig can be installed 30KW generator	After the installation of generator, can be used as electric welding, lighting, and other useful life.
